Attenuation Accuracy Variable Optical Attenuator Providing 0.1 to 33 DBs Transition Speed and ± 0.15 DB Accuracy for Optical Signal Management

Product Description:

The Variable Optical Attenuator is an essential component in optical communication systems, designed to precisely control the power level of optical signals. This device is widely used in testing, measurement, and network applications where accurate attenuation is critical to ensure optimal system performance. The Variable Optical Attenuator offers a high degree of flexibility and precision, making it an indispensable tool for engineers and technicians working with fiber optic networks.

One of the standout features of this Variable Optical Attenuator is its broad attenuation range. It supports attenuation from 0 to 35 dB, with an optional extension up to 40 dB for applications requiring higher levels of signal reduction. This wide range allows users to tailor the optical power levels to meet specific requirements, whether for testing purposes or to balance signal strengths across different parts of a network.

The device is engineered to deliver exceptional attenuation accuracy. Within the 0 to 30 dB range, the accuracy is maintained at ±0.15 dB, ensuring minimal deviation from the desired attenuation level. For higher attenuation values between 30 to 35 dB, the accuracy remains tightly controlled at ±0.2 dB. This level of precision is crucial for maintaining signal integrity and avoiding performance degradation in sensitive optical systems.

Speed and responsiveness are also key attributes of this Variable Optical Attenuator. It features an attenuation transition speed adjustable between 0.1 and 33 dB per second. This range of speed settings allows users to control how quickly the attenuation level changes, accommodating various testing scenarios and operational needs. Whether a slow, gradual attenuation or a rapid adjustment is required, the device can adapt accordingly.

Another important specification is the averaging time of the monitor photodetector (PM), which can be set between 2 to 1000 milliseconds. This flexibility in averaging time allows for enhanced stability and accuracy in monitoring the optical power, reducing noise and fluctuations that might otherwise affect measurement reliability. By fine-tuning the averaging time, users can optimize the device's performance to suit different signal conditions and measurement precision requirements.

The settling time of the Variable Optical Attenuator is remarkably fast, at just 200 milliseconds. This quick response time ensures that the attenuation level stabilizes rapidly after any adjustment, minimizing downtime and improving the efficiency of testing or operational procedures. Fast settling time is particularly beneficial in dynamic environments where rapid changes in optical power need to be managed without interrupting system performance.

Overall, the Variable Optical Attenuator combines a wide attenuation range, high accuracy, adjustable transition speed, and rapid settling time with customizable averaging times for monitoring. These features make it highly versatile and reliable for a variety of applications in optical communications, including system testing, calibration, and power management. Its robust performance and precision control capabilities ensure that users can maintain optimal signal quality and system integrity across a range of operating conditions.

In summary, this Variable Optical Attenuator is a high-performance device designed to meet the demanding needs of modern optical networks. Its comprehensive feature set, including an attenuation range up to 35 dB (with a 40 dB option), ±0.15 to ±0.2 dB attenuation accuracy, adjustable attenuation transition speeds from 0.1 to 33 dB/s, an averaging time for the monitor PM ranging from 2 to 1000 milliseconds, and a rapid settling time of 200 milliseconds, makes it an ideal choice for professionals seeking precise and reliable optical attenuation solutions. Whether deployed in laboratory testing or live network environments, this Variable Optical Attenuator delivers consistent, accurate performance to support advanced optical communication technologies.

Features:

• Product Name: Variable Optical Attenuator
• Compatible Fiber Types: 50/125um, 62.5/125um Multi-Mode Fiber (MMF)
• Attenuation Transition Speed: 0.1 ~ 33 dB/s for precise control
• Maximum Safe Input Power: +17 dBm to ensure reliable operation
• Connector Types Available: FC/UPC Connector and FC/APC Connector
• High Repeatability: ±0.05 dB for consistent performance
• Designed specifically as a Variable Optical Attenuator for flexible optical power adjustment
• Ideal for applications requiring precise attenuation using a Variable Optical Attenuator

Technical Parameters:

Applications:

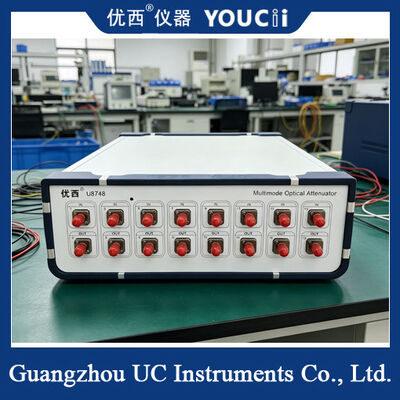

The YOUCii Variable Optical Attenuator, model number U8748, originating from CHINA, is an essential component widely used in various optical communication systems to precisely control signal power levels. Its high attenuation accuracy, rated at ± 0.15 dB for 0 to 30 dB and ± 0.2 dB for 30 to 35 dB, ensures reliable and stable performance, making it ideal for applications demanding precise optical signal management.

In modern telecommunication networks, the Variable Optical Attenuator is indispensable for testing and balancing optical signals during the installation and maintenance of fiber optic links. It helps engineers simulate different signal conditions by accurately adjusting power levels, thereby optimizing the performance of optical transceivers and receivers. The attenuation precision of the U8748 model allows for minimal signal distortion, maintaining the integrity of data transmission across long distances.

Another common scenario for the application of the YOUCii Variable Optical Attenuator is in optical laboratory environments where research and development activities require fine-tuning of optical components. The low insertion loss of ≤ 1.8 dB (Type 1.5 dB) and a high return loss of greater than 25 dB make this attenuator suitable for integration into experimental setups without significant signal degradation or back reflections. This feature is critical when testing sensitive optical devices and systems, ensuring accurate measurement results.

Moreover, the fast settling time of 200 ms and flexible averaging time of the monitor photodiode (PM) ranging from 2 to 1000 milliseconds enhance the adaptability of the YOUCii Variable Optical Attenuator in dynamic environments. For instance, in optical network monitoring and automated test equipment (ATE), where real-time adjustments and rapid response are required, this product delivers consistent and repeatable attenuation control.

In summary, the YOUCii Variable Optical Attenuator U8748 is perfectly suited for a variety of applications including optical communication system testing, laboratory research, network monitoring, and ATE systems. Its precise attenuation accuracy, low insertion loss, high return loss, and fast response time make it a dependable choice for engineers and researchers working to optimize and maintain high-performance optical networks worldwide.
