商品の詳細:
|
| 光コネクタ: | FC/APC | 出力電力: | 最大+10dBm |
|---|---|---|---|
| 制御インターフェイス: | USB/RS232 | パワー調整範囲（オプション）: | 25 dB |
| 波長の決断: | 1.0 pm | 絶対波長の正確さ: | ± 10 pmのタイプ。<5 pm |
| 相対的な波長の正確さ: | ±5 pmのタイプ。± 2 pm | ||
| ハイライト: | spot welding machine with long-lasting battery,tunable laser source with 10 KHz modulation,battery spot welder with 0.1 Nm linewidth |
||

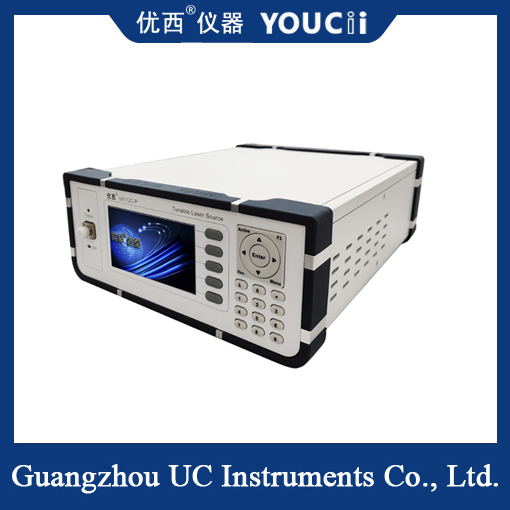

Tunable laser sources are cutting-edge optical devices that offer outstanding performance and versatility for a wide range of applications in the fields of telecommunications, research and testing. This advanced product features impressive specifications and functions, making it the top choice for professionals seeking precision and reliability.
One of the prominent features of tunable laser sources is their superior edge-mode rejection ratio, which exceeds 45 dB. This ensures excellent signal quality and minimal interference, making it an ideal choice for demanding tasks that require high fidelity and accuracy.
Specification
| Model # | U8112C-P | |||
| Band Option | C | |||
| Wavelength Tuning range (nm) | 1525~1568nm | |||
| Output Power | ≥10dBm | |||
| Power Adjust Range (Option) | 25 dB | |||
| Wavelength resolution | 1.0 pm | |||
| Absolute wavelength accuracy | ± 10 pm, typ. ＜5 pm | |||
| Relative wavelength accuracy | ±5 pm, typ. ± 2 pm | |||
| Wavelength repeatability | ± 2 pm, typ. ±1 pm | |||
| Wavelength stability | ≤± 2 pm (24 hrs at constant temperature) | |||
| Tuning speed | ≤ 2 ms per step | |||
| Power stability | ≤ ± 0.01dB, (15min). | |||
| Power repeatability | ± 0.05dB | |||
| Power linearity | ± 0.3dB | |||
| Power flatness versus wavelength | 0.3dB typ. 0.5dB max. | |||
| Side-mode Suppression ratio | ≥ 35dB | |||
| Relative intensity noise | ＜ -135dB | |||
| Power | AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max. | |||
| Storage temperature | −40°C to +80°C | |||
| Operating temperature | 0°C to +45°C | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 2.0 kg | |||
Equipped with FC/APC type optical connectors, this laser source offers a secure and stable connection, minimizing signal loss and ensuring consistent performance. FC/APC connectors are renowned for their precision and reliability, making them the preferred choice for critical applications where signal integrity is of vital importance.
In conclusion, tunable laser sources are the most advanced optical devices that offer outstanding performance and reliability in a wide range of applications. This product features an outstanding polarization extinction ratio, precise optical connectors, flexible modulation frequencies, high output power and multiple modulation depths, making it the preferred choice for professionals in the telecommunications, research and testing fields.
