商品の詳細:
|
| リターン・ロスの範囲: | 0~35 dB （40dBタイプ） | 減衰器の精度: | ≤ ± 0.1 dB (代表値) (0～40dB) |
|---|---|---|---|
| 通信インターフェイス: | USB/RS232港 | 再現性: | ±0.10 dB |
| 適用繊維のタイプ: | 標準的なmm | 動作温度: | 0~ +40℃ |
| ハイライト: | USB variable optical attenuator,RS232 optical attenuator with repeatability,high-precision variable optical attenuator |
||
The Variable Optical Attenuator is a high-quality optical device designed for precise and efficient attenuation of light signals in optical communication systems. Equipped with a versatile communication interface featuring both USB and RS232 ports, this attenuator offers seamless connectivity and control for a wide range of applications.
One of the key features of the Variable Optical Attenuator is its impressive Return Loss Range, spanning from 0 to 35dB. This wide range allows for flexible adjustment of signal strength to meet the specific requirements of different optical networks and setups, ensuring optimal performance and signal integrity.
| Model # | U8324 / U8328 |
| Attenuator Range | 0~35 dB(40dB Type) |
| Calibration Wavelength (Option) | 850 nm (908/980 nm selectable) |
| Insertion Loss | ≤ 1.8 dB Type 1.5dB |
| Fiber Type | 50/125um, 62.5/125um MMF |
| Connector Type | FC/UPC Connector |
| Attenuation Accuracy | ± 0.10 dB (0 ~ 30 dB) |
| Repeatability | ±0.10 dB |
| Averaging time of monitor PM | 2~1000 ms |
| Settling Time | 200ms |
| Attenuation Transition Speed | 0.1 ~ 33 dB/s |
| Return Loss | > 25 dB |
| Communication Interface | RS232, USB, RJ45 Control by PC |
| Maximum safe input power | +27dBm |
| Recalibration Period | 2 years |
| Operation Temperature | 0～ +40℃ |
| Storage Temperature | -30～+80℃ |
| Power | 100~240 V |
| Dimensions | 245mm W, 105mm H, 320 mm D |
| Weight | 5 kg |
Product Name: Variable Optical Attenuator
Communication Interface: USB/RS232 Port
Application Fiber Type: Standard MM
Insertion Loss: <= 1.8dB
Attenuation Range: 0-35dB
Repeatability: ±0.10 dB

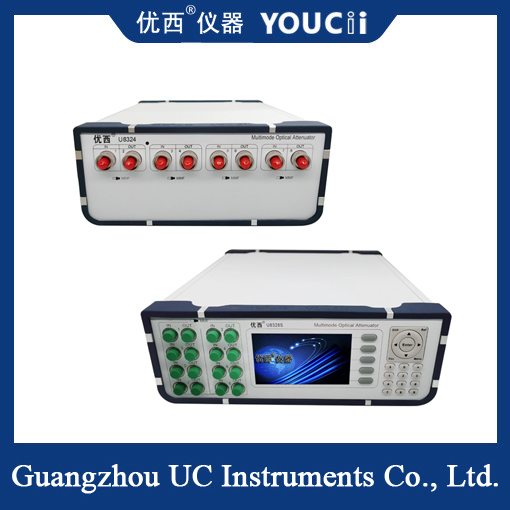

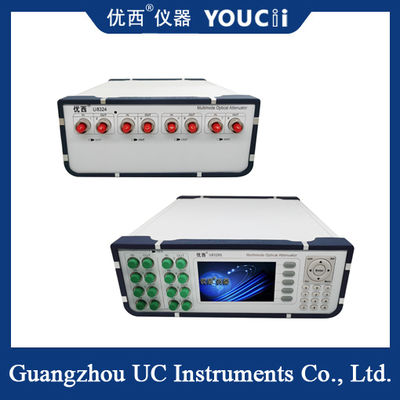

YOUCii Variable Optical Attenuator U8324 is a high-quality product designed for precise control of optical signal attenuation in various optical communication applications. Made in CHINA, this attenuator offers exceptional performance and reliability for a wide range of scenarios.
With an attenuation accuracy of ≤ ± 0.1 dB Typ. (0 ~ 40 dB), the U8324 Variable Optical Attenuator by YOUCii ensures accurate and consistent attenuation levels, making it ideal for demanding optical network setups. The product is compatible with standard single-mode (SM) fibers, making it versatile for use in different fiber optic systems.
