商品の詳細:
|
| 再現性: | ±0.10 dB | 減衰器の精度: | ±0.10 dB (0 ~ 30 dB) |
|---|---|---|---|
| 適用繊維のタイプ: | 標準的なmm | 挿入損失: | ≤ 1.8 dBのタイプ1.5dB |
| 減衰範囲: | 0〜35dB | 通信インターフェイス: | USB/RS232港 |
| ハイライト: | 0-60 DB variable optical attenuator,return loss range optical attenuator,variable optical attenuator with warranty |
||
Product Summary:
Optical attenuators are high-quality devices designed for precisely controlling and regulating the strength of optical signals in optical fiber systems. It is equipped with advanced functions, making it an ideal choice for various applications in the telecommunications industry.
Key Features:
Polarization-related loss: The insertion loss of the optical attenuator is <= 1.8dB, allowing for effective signal attenuation without affecting signal quality.
Application type of optical fiber: This attenuator is matched with multi-film optical fibers, making it widely applicable and suitable for various optical fiber networks and systems.
Repeatability: This device features excellent repeatability with an accuracy of ±0.1 dB. This ensures consistent and accurate signal control.
Communication interface: The variable optical attenuator is equipped with a convenient USB/RS232 port for easy connection and control, allowing for seamless integration into existing systems.

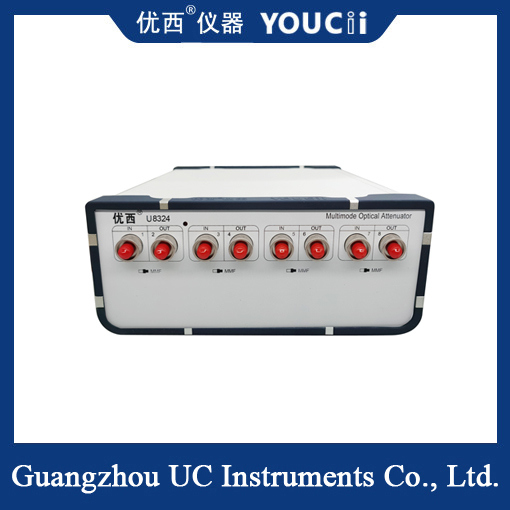

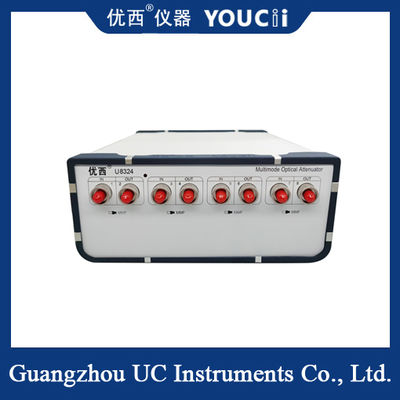

| Model # | U8324 / U8328 |
| Attenuator Range | 0~35 dB(40dB Type) |
| Calibration Wavelength (Option) | 850 nm (908/980 nm selectable) |
| Insertion Loss | ≤ 1.8 dB Type 1.5dB |
| Fiber Type | 50/125um, 62.5/125um MMF |
| Connector Type | FC/UPC Connector |
| Attenuation Accuracy | ± 0.10 dB (0 ~ 30 dB) |
| Repeatability | ±0.10 dB |
| Averaging time of monitor PM | 2~1000 ms |
| Settling Time | 200ms |
| Attenuation Transition Speed | 0.1 ~ 33 dB/s |
| Return Loss | > 25 dB |
| Communication Interface | RS232, USB, RJ45 Control by PC |
| Maximum safe input power | +27dBm |
| Recalibration Period | 2 years |
| Operation Temperature | 0～ +40℃ |
| Storage Temperature | -30～+80℃ |
| Power | 100~240 V |
| Dimensions | 245mm W, 105mm H, 320 mm D |
| Weight | 5 kg |
