商品の詳細:
|
| 測定範囲: | 0〜 +60 dBm | 動作温度: | -30 | +80℃ |
|---|---|---|---|
| 寸法: | 245 mm W、105 mm H、320 mm d | 較正: | 工場/フィールド |
| 画面: | LCD | データインターフェイス: | USB/RS232 |
| ハイライト: | CE certified optical power meter,FCC RoHS compliant power meter,optical power meter with battery adapter |
||

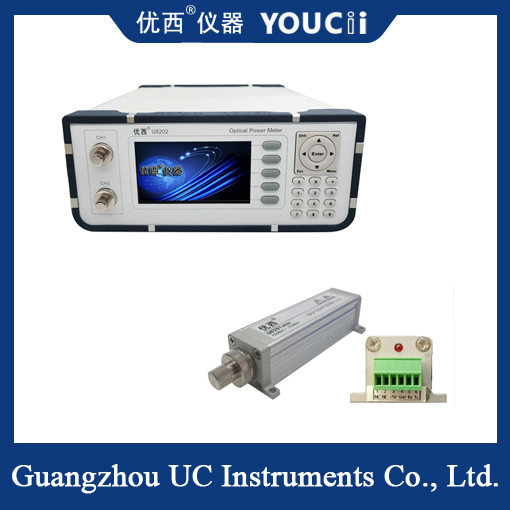

The Optical Power Meter is a versatile and reliable tool designed to meet the needs of professionals in various industries. It is suitable for a wide range of applications, providing accurate measurements and reliable performance.
Operating within a temperature range of -10 to +50℃, this optical power meter can be used in various environmental conditions without compromising its functionality. Whether you are working in a controlled indoor setting or in challenging outdoor conditions, this power meter will deliver consistent results.
The power meter features a clear and easy-to-read LCD display, allowing users to view measurements with precision and clarity. The display provides real-time data, making it convenient for users to monitor power levels and make quick adjustments as needed.
Equipped with FC, APC connector types, this power meter offers versatility and compatibility with a wide range of optical systems. Whether you are working with different types of connectors or interfaces, this power meter can accommodate your needs with ease.
| Model | U8202 | |||
| Number of Channels | 2 | |||
| Power Range | +10 ~ -65dBm / +5 ~ -70dBm | |||
| Wavelength Range | 850 ~ 1700 nm | |||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | |||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | |||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical | |||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | |||
| Return Loss | ＞ 40 dB | |||
| Operation Temperature | 0 ～ +40℃ | |||
| Storage Temperature | -30 ～ +80℃ | |||
| Recalibration Period | 2 years | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 2.0 kg | |||
With a focus on accuracy and reliability, this optical power meter is an essential tool for measuring power levels in optical systems. It is suitable for a variety of applications, including testing optical networks, verifying signal quality, and assessing return loss.
The power meter offers a wide Wavelength Range, allowing users to measure power levels across different wavelengths with precision. Whether you are working with single-mode or multi-mode fibers, this power meter can provide accurate results for various applications.
In conclusion, the Optical Power Meter is a high-quality and versatile tool that meets the needs of professionals in the optical industry. With its certifications, operating temperature range, LCD display, connector types, and power supply options, this power meter offers reliability, accuracy, and convenience for a wide range of applications.
