商品の詳細:
|
| 再現性: | ≤±0.015 dB | 返品損失: | > 40 dB |
|---|---|---|---|
| Recalibrationの期間: | 2年 | 動作温度: | 0~ +40℃ |
| 保管温度: | -30~+80℃ | 力: | 100~240ボルト |
| 寸法: | 245のmm W、105のmm H、320のmm D |

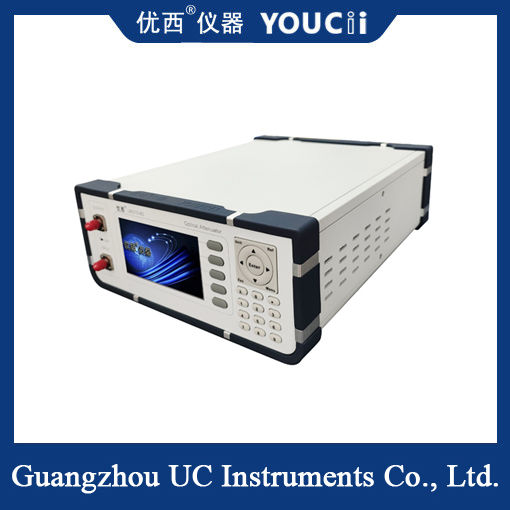

Dual-channel Desktop MEMS Adjustable Optical Attenuator
The dual-channel 0-60dB adjustable optical attenuator is a passive optical device integrating dual independent optical path control, which achieves dynamic attenuation of optical power through precise mechanical or electro-optic effects. Its core functions include:
Dual-channel independent regulation
Supports synchronous or asynchronous attenuation of two optical signals, with an attenuation range of 0-60dB, suitable for power balancing in multi-wavelength systems (such as DWDM).
High precision and low loss
Wide wavelength coverage
| Model # | U8310-40 | U8310-60 | U8320 |
| Attenuator Range | 0 ~ 40 dB | 0~60 dB | 0~40 dB |
| Wavelength Range | 1310 / 1490 /1550 /1610 nm | 850 nm | |
| Insertion Loss | ≤ 1.2 dB | ≤ 1.8 dB | ≤ 1.5 dB |
| Fiber type | Standard SMF | MMF 50/62.5 adaptive | |
| Connector Type | FC/PC Connector | ||
| Attenuator Accuracy | ≤ ± 0.1 dB typ. (0 ~ 40 dB) | ≤ ± 0.2 dB | |
| Repeatability | ≤±0.015 dB | ≤±0.05 dB | |
| Attenuation Transition Speed | 0.1 ~ 50 dB/s | 0.1 ~ 35 dB/s | |
| Polarization Depend Loss | ≤0.25 dB (0 ~ 40 dB). | ||
| Return Loss | ＞ 40 dB | ＞ 30 dB | |
| Recalibration Period | 2 years | ||
| Operation Temperature | 0～ +40℃ | ||
| Storage Temperature | -30～+80℃ | ||
| Power | 100~240 V | ||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | ||
| Weight | 2.0~5.0 kg | ||
Typical application scenarios
Power balancing of DWDM system
Research and development and testing of optical modules
Optical fiber sensing network
Optical amplifier (EDFA) control
